Off-Hook Detection

An off-hook detection circuit is required to sense when a telephone receiver is lifted—completing the subscriber loop between tip and ring—so that the system can recognize an attempt to place or answer a call.

Note

Safety: The subscriber loop may carry up to –48 V DC and 90 V AC ringing. All detection methods must provide robust isolation from line voltages to protect downstream circuitry and users. Never connect microcontroller logic directly to line voltage.

Functional Role

Off-hook detection plays a critical role in managing call flow. When the telephone goes off-hook (receiver lifted), a closed current path is created across the tip and ring conductors, typically resulting in 20–60 mA of DC loop current. This signals intent to place or answer a call.

When the phone returns on-hook (receiver replaced), loop current ceases, indicating call termination or cancellation.

Telephone systems use this state change to:

  • Initiate or answer calls

  • Control dial tone and ringing behavior

  • Manage call supervision, timeout, and billing

  • Trigger switching or Bluetooth pairing logic in modern integrations

Engineering Approaches Over Time

The methods used to detect the off-hook condition have evolved with changes in switching technology and safety standards. Historically, this detection occurred at the central office (CO) or within PBX systems using one of several approaches:

Mechanical Relays (Early 1900s–1940s): - Early systems used relays in series with the subscriber loop. - When the phone was lifted, loop current energized the relay coil. - Relay contacts would activate the switching path. - Reliable but bulky and prone to mechanical wear.

Discrete Transistor Circuits (1950s–1970s): - As solid-state components became common, relay logic was replaced. - Loop current flowed through a sensing resistor; the resulting voltage drop activated a transistor. - Lower cost and fewer moving parts, but lacked electrical isolation.

Optical Isolation (1970s–1990s): - Optocoupler-based designs provided safe galvanic isolation between line voltage and logic systems. - Loop current was used to drive the internal LED of an optocoupler, with the output side connected to digital logic. - Widely adopted in PBX systems, modems, and early embedded telephony.

Line Interface ICs / SLICs (1990s–Present): - Subscriber Line Interface Circuits integrate loop current sensing with additional features such as: - Battery feed - Ring injection - 2-wire to 4-wire audio conversion (hybrid) - Over-voltage protection - Off-hook detection is often integrated into these chips, especially in VoIP adapters, FXS ports, and telecom-grade line cards.

Solid-State Relays (Recent Embedded Systems): - Some embedded systems use SSRs with built-in optical isolation. - These can sense or switch based on loop current with no mechanical contacts. - Leakage current and cost may be trade-offs depending on application.

Key Considerations

Regardless of the method used, all off-hook detection circuits must meet several design requirements:

  • Safe voltage handling – Must tolerate and isolate –48 V DC and ringing voltages.

  • Reliable detection threshold – Should trigger cleanly within the expected 20–60 mA range.

  • Fast response – Should detect hook state changes promptly to support switching logic.

  • Long-term durability – Especially in CO and PBX applications, components must handle millions of cycles.

Debouncing and Supervisory Logic

Mechanical hookswitches may bounce when transitioning between on-hook and off-hook states. To ensure stable behavior:

  • Implement debounce filtering in software (or optionally in hardware).

  • Consider timeout supervision to detect calls left off-hook too long (e.g., abandoned handsets, stuck relays).

  • Systems may respond by playing a reorder tone, logging an error, or releasing the line.

Signal Flow Overview

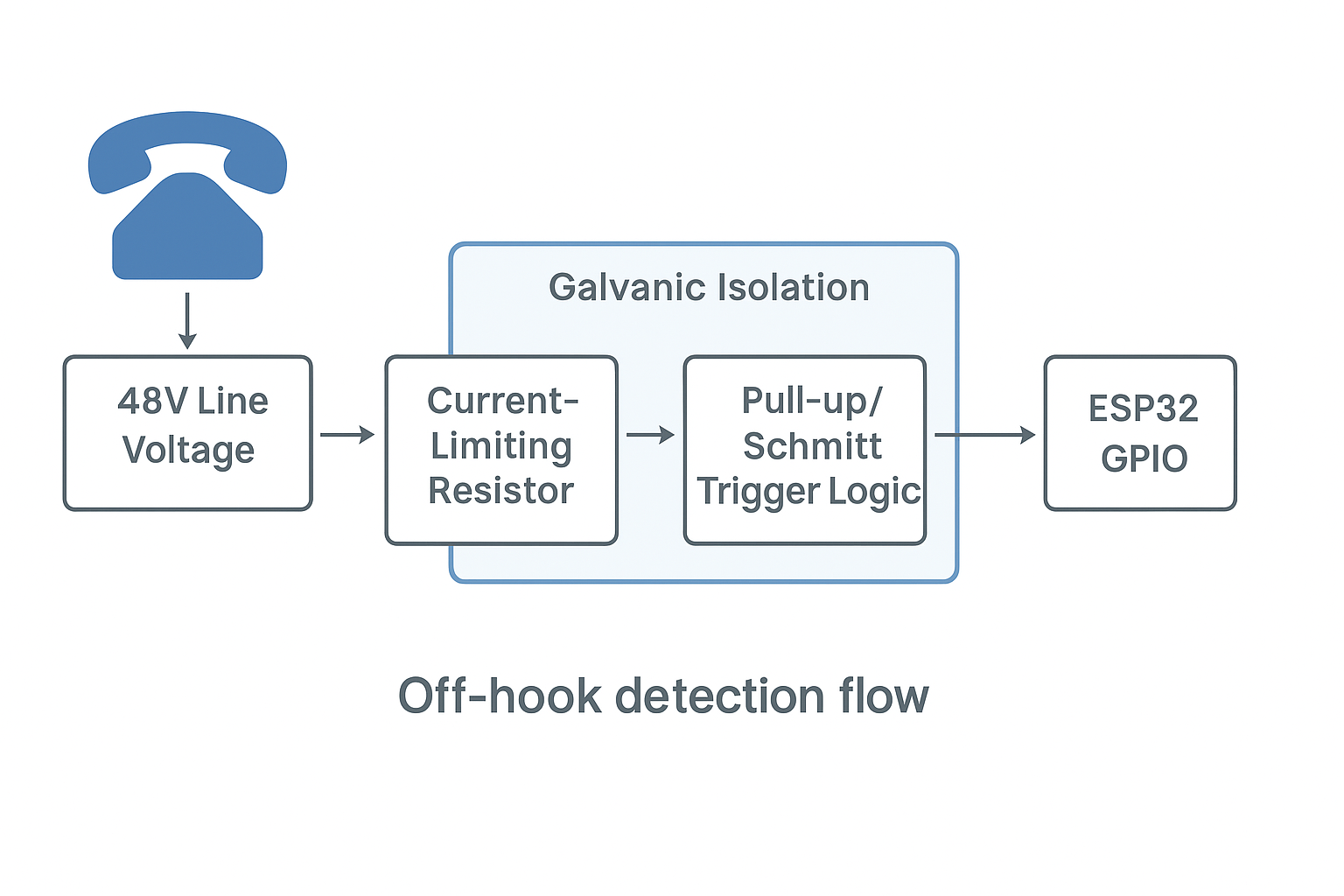

The following diagram illustrates a generalized off-hook detection signal path—from the subscriber loop through the detection mechanism and into a logic or control system:

Off-hook detection signal flow from phone line to digital control

Final Notes

Modern embedded systems often draw from historical practices when implementing off-hook detection, blending safety, isolation, and responsiveness. While discrete designs are still used for hobbyist and low-volume applications, commercial systems frequently rely on integrated line interface chips for robust and efficient detection.
